TE Connectivity IPT-HD Power Bolt Connectors

The high voltage connectors feature a low contact resistance design that allows the connector to withstand excessively high engine-level vibrations.

October 16, 2021
TE Connectivity - Industrial & Commercial Transportation business unit
Hero Product Master
TE Connectivity
Te Logo

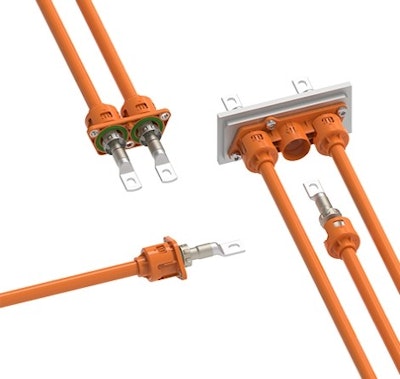

TE Connectivity introduces the IPT-HD Power Bolt Connector designed specifically for ultra-rugged applications while addressing safety and reliability requirements.

  • Performs well when exposed to extreme temperatures (-40-125 C [-40-257 F])
  • Low contact resistance design allows connector to withstand excessively high engine-level vibrations
  • Features a new shielding design that complies with ISO and LV standards
  • Available in thicker options for conductor cross-sections used in MCU (Motor Control Unit), E-axle and E-motor applications
  • Supports up to three positions, as well as 50 mm2 (0.08 in.2) and 70 mm2 (0.11 in.2) conductor cross-sections with a 95 mm2 (0.14 in.2)
  • Provides a separate, single wiring harness to help simplify the assembly process


Request More Information
Fill out the form below to request more information about TE Connectivity IPT-HD Power Bolt Connectors
